Welcome to Shanghai Qiao Feng industrial co., LTD's website

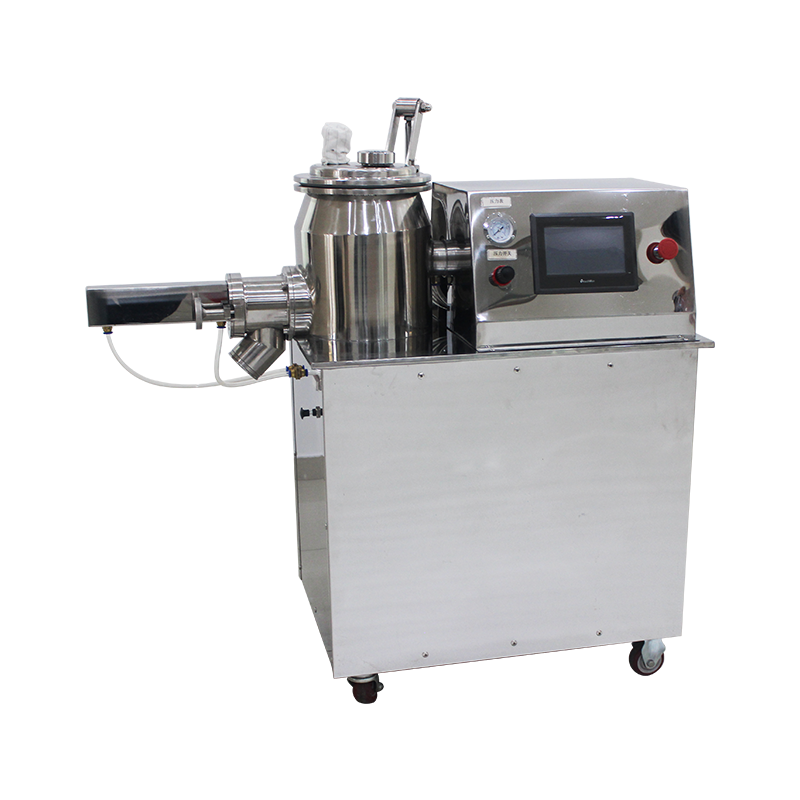

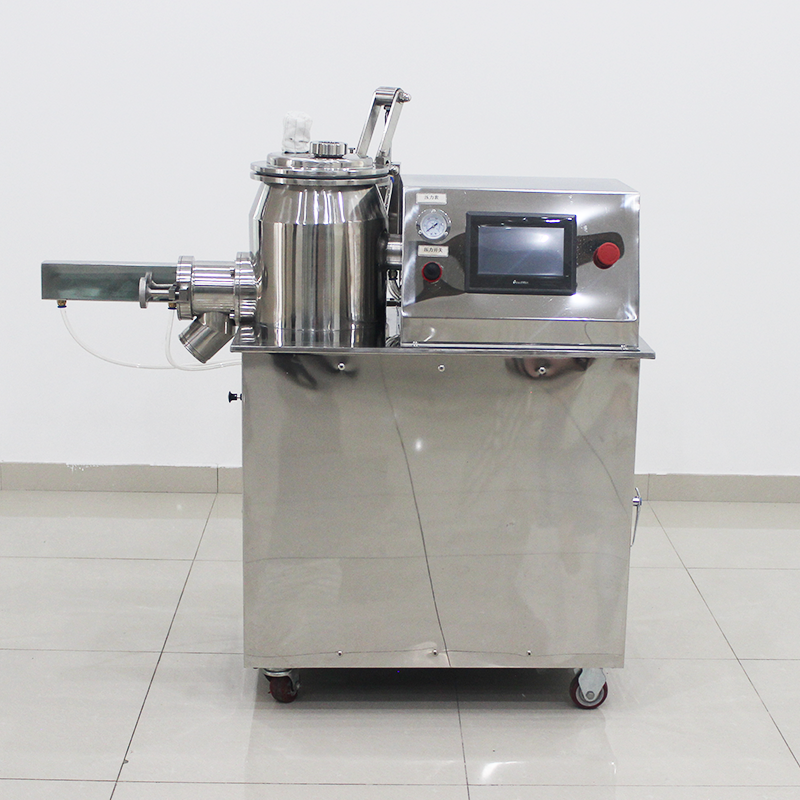

Small wet unregular machine QFN GHL - 10
Device name: Small wet mixing granulator
Equipment type: qfn - ane - 10
Output: 15kg/batch to 200kg/batch (custom made)
Test machine: Support test making experiment
Scope of application: The powders and adhesives are fully mixed into a wetting material in a cylindrical container by bottom mixing slurry, and then cut into uniform wet particles by a side-mounted high-speed pulverizer. Short granulation time, high efficiency and energy saving. When the main drugs and excipients differ greatly, they can still achieve uniform combination without stratification.
Application scenario: Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc.
Is it guaranteed? National three year warranty
Telephone: 17317246351
Detail

1.Use description:
The powders and adhesives are fully mixed into a wetting material in a cylindrical container by bottom mixing slurry, and then cut into uniform wet particles by a side-mounted high-speed pulverizer. Short granulation time, high efficiency and energy saving. When the main drugs and excipients differ greatly, they can still achieve uniform combination without stratification.
Two.Working principle:
The horizontal cylinder structure is adopted and the structure is reasonable. The inflatable sealing drive shaft can be switched to water when cleaning. The granulation of sulphide granulation is nearly spherical with good fluidity. Compared with the traditional process, the adhesive is reduced by 25%, the drying time is shortened, the dry-wet mixing granulation is completed in the same sealed container, and the process is reduced, which conforms to the GMP specification. The whole operation has strict safety protection measures.

Three, product characteristics:

  • This machine adopts the structure of the bedroom cylinder, and the structure is reasonable.
  • The inflatable sealing drive shaft can be switched to water when cleaning.
  • Fluidization granulation, spheroid is nearly spherical and fluidity is good.
  • Compared with the traditional process, the adhesive is reduced by 25% and the drying time is shortened.
  • Each batch is mixed for 2 minutes, granulation for 1-4 minutes, the efficiency is 4-5 times higher than the traditional process.
  • In the same closed container, dry mixing wet mixing granulation process is reduced, which is in line with the GMP specification.
  • The whole operation has strict safety protection measures. 8, mixing and cutting are controlled by frequency conversion to make the granulation more uniform.
  • Four, equipment type and parameters:


    Model

    volume

    yield

    Mixing speed

    Hybrid power

    Cutting speed

    Cutting power

    ghl - 50

    507

    15kg/batch

    200 / 400rpm

    5.5kw

    1500 / 3000rpm

    2.2kw

    ghl - 150

    150l

    50kg/batch

    180/270rpm

    15kw

    1500 / 3000rpm

    5.5kw

    ghl - 200

    200L

    80kg/batch

    180/270rpm

    15kw

    1500 / 3000rpm

    5.5kw

    ghl - 250

    250l

    100 kg / batch

    180/270rpm

    15kw

    1500 / 3000rpm

    5.5kw

    ghl - 300

    300L

    130kg/batch

    140/220rpm

    18.5kw

    1500 / 3000rpm

    7.5kw

    ghl - 400

    400L

    200kg / batch

    106/155rpm

    22kw

    1500 / 3000rpm

    7.5kw

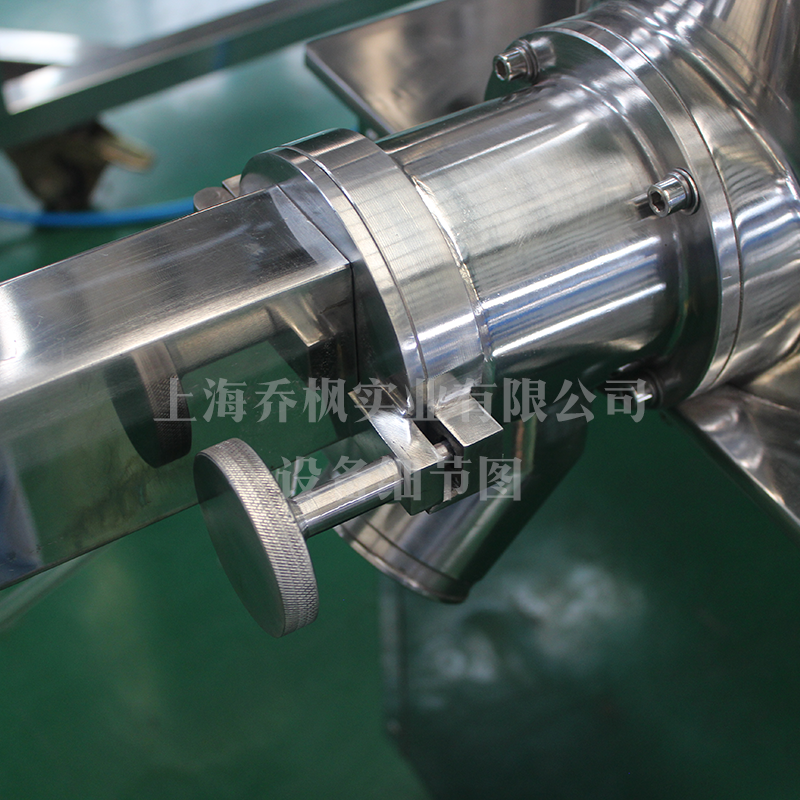

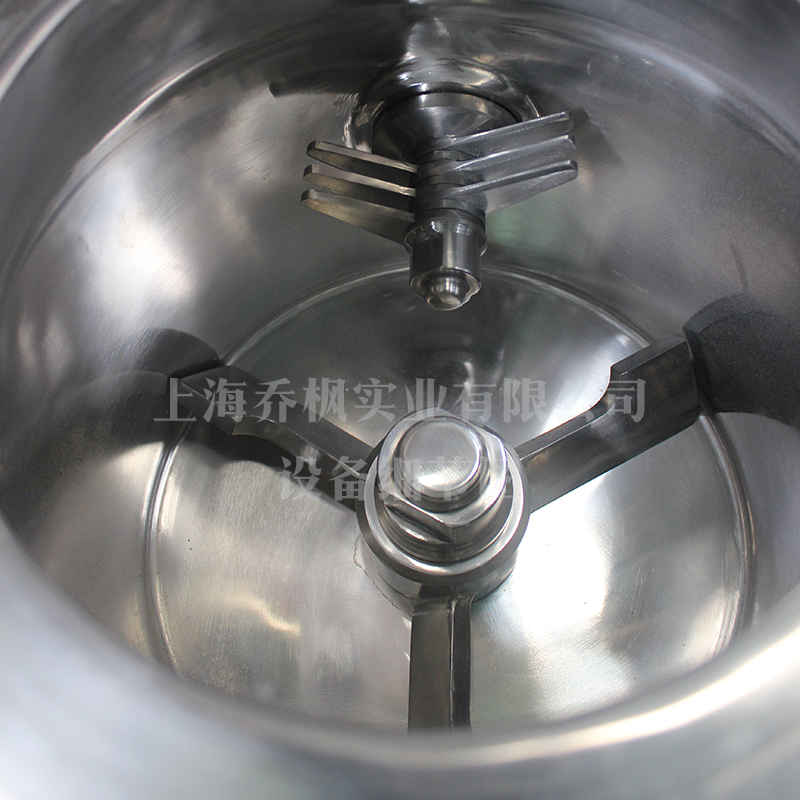

    Photo analysis:


    Contact us


    Tel: 17317246351

    Mailbox: sales@qfn17.com

    URL: http://m.40man.cn

    Address: Shanghai fengxian canal north road no. 1185
